Product Highlights
- Air Flow: 1910m³/hr(M³/H)
- Auto Shutoff: Yes
- Rangehood Size (cm): 120
- Rangehood Type: Undermount
- Warranty (Years): 2
Product Overview

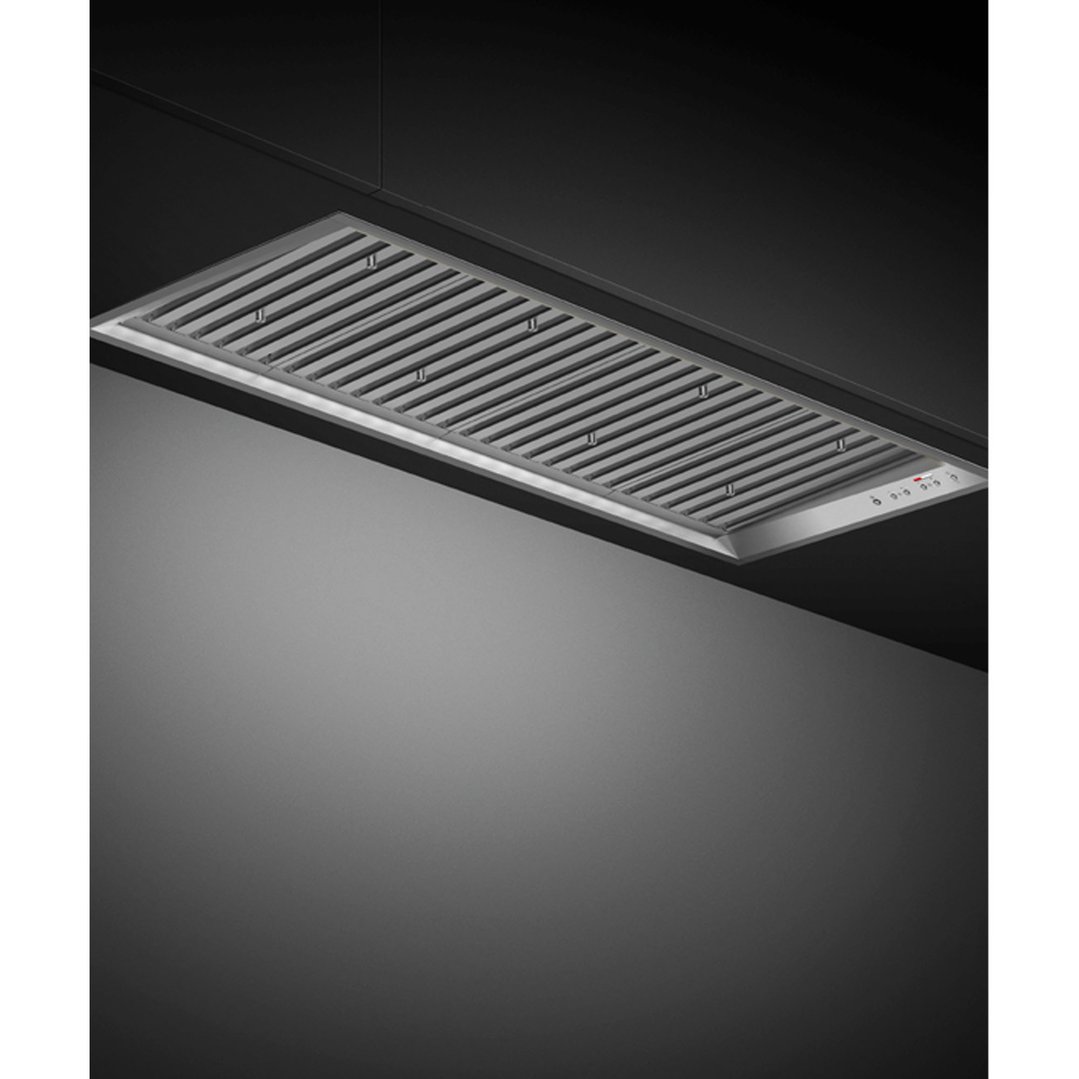

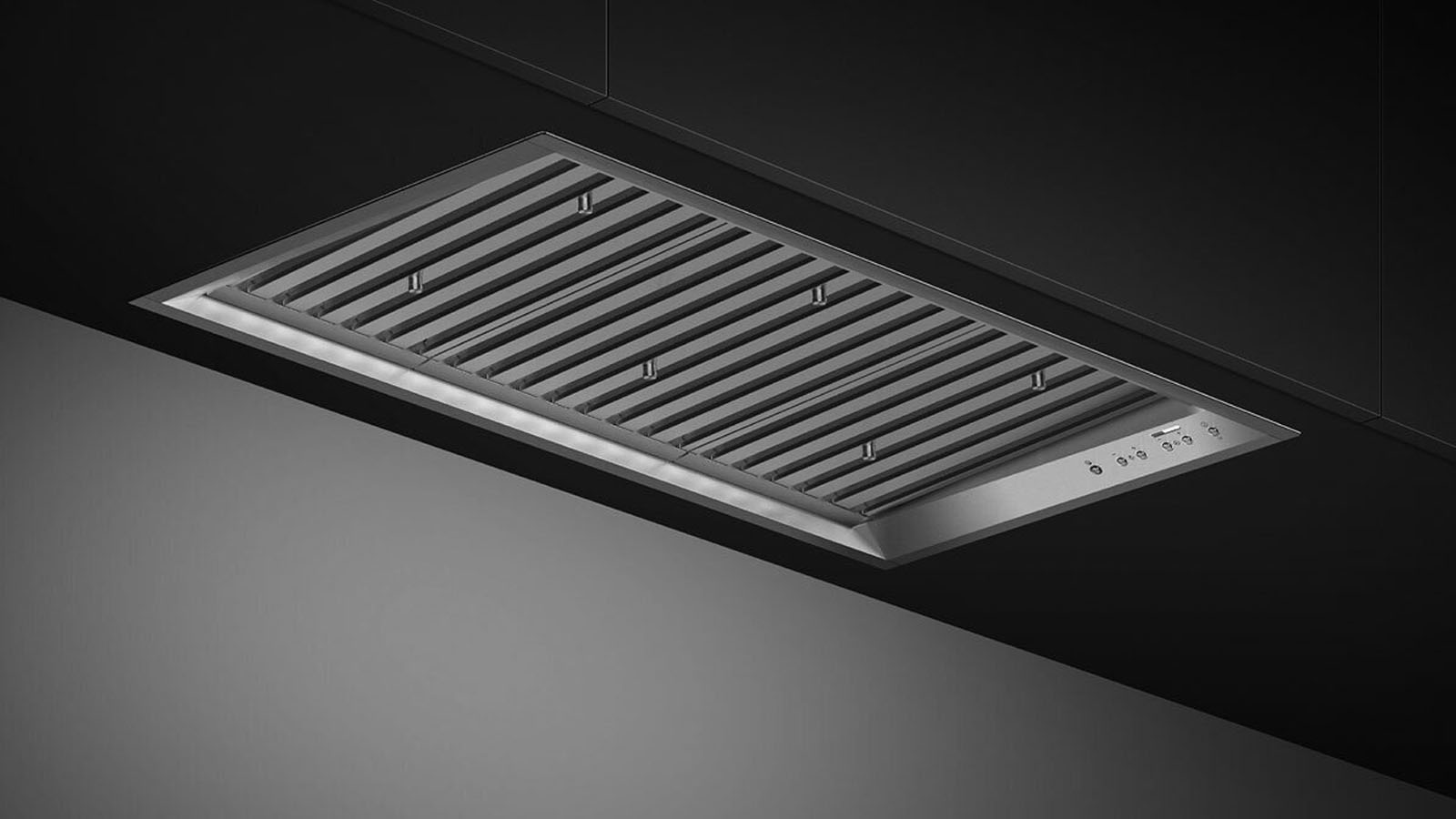

FISHER & PAYKEL HPB12048-2 | SERIES 9 120CM Under Cupboard Integrated Insert Rangehood Stainless Steel

With edge-to-edge extraction, this efficient, stylish rangehood is perfectly hidden away in your cabinetry. This high quality integrated rangehood seamlessly blends behind cabinetry in a variety of kitchen layouts. Beautiful in its simplicity, this product has brushed finished surfaces with no visible screws.
- • With five fan speeds, select the perfect extraction rate for your cooking
- • With dimmable LED strip lighting
- • 1910m³/hr maximum airflow
- • Dishwasher safe filters that are easy to remove and clean

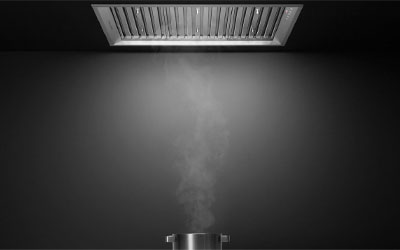

EDGE TO EDGE EXTRACTION
Filters effectively reach edge to edge, maximising the capture and extraction of steam, odours and grease. Powered by a brushless DC motor, the Integrated Rangehood operates more efficiently, more reliably and with less noise than units with AC motors.

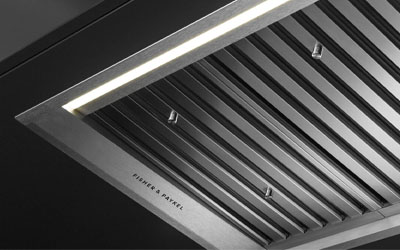

FULL SURFACE LIGHTING
LED lighting illuminates the entire cooktop surface so you can ensure you have the perfect sear or ideal reduction. With dimmable lights featuring fade in and fade out features.

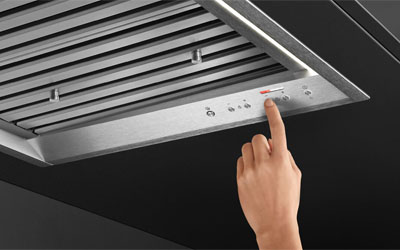

EASY TO USE
Enjoy fingertip control of LED-illuminated, soft-touch buttons. This model also comes with a remote control for convenience.

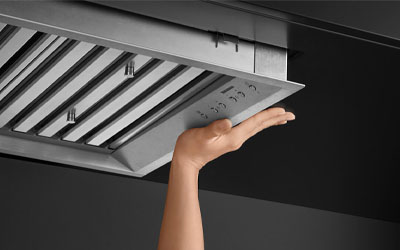

EASY CLEANING
Multi-layered filters effectively trap grease particles during extraction. Designed for simple removal, they're easy-to-clean and dishwasher safe.
SIMPLE INSTALLATION
Designed for simple installation in your kitchen cabinetry, with an adjustable mounting system.
Specifications
Global
- Model Number: HPB12048-2
- Rangehood Type: Undermount
General
- Colour: Stainless Steel
- Control Type: Button
- Installation: Built-in installation
Size
- Duct Diameter (mm): 250
- Rangehood Size (cm): 120
Performance
- Air Flow : 1910m³/hr(M³/H)
- Speed Levels: 5
Safety Features
- Auto Shutoff: Yes
- Dishwasher Safe: Yes
Lighting Features
- Lighting Type: LED
- Number Of Lights: 1
Filter Information
- Filtration : Stainless Steel Baffle
- Number Of Filters: 4
Energy Specification/Power
- Motor Type: DC Motor
- Noise Level (dBa): 57
- Voltage (V): 230

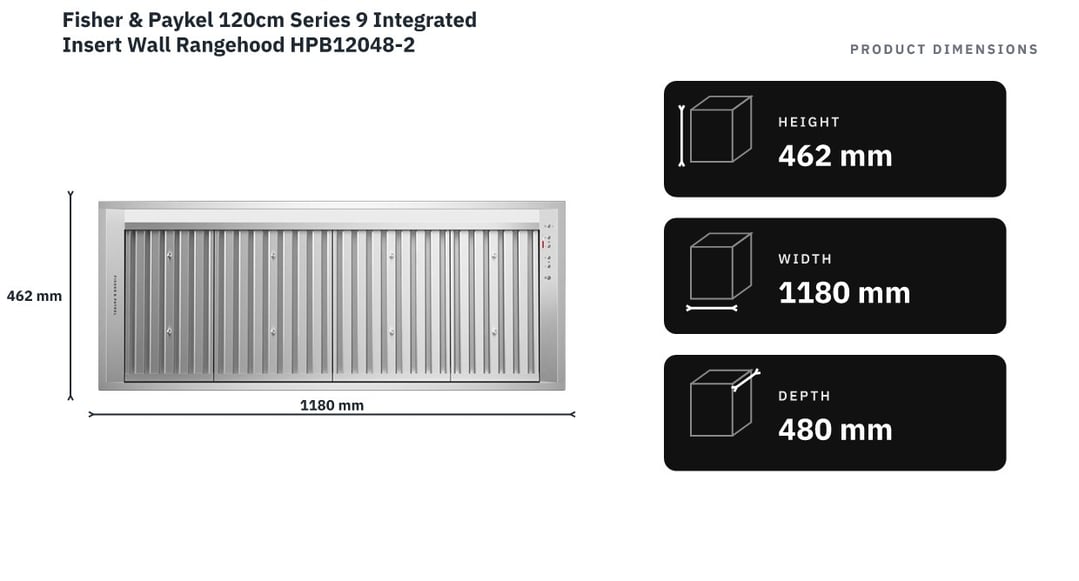

Dimensions
- Depth: 480mm
- Height: 462mm
- Width: 1180mm
In The Box & Warranty
- Warranty (Years): 2
