Liebherr 402L Bottom Mount Integrated Fridge Right Hinged ECN7860RHH

ECN7860RHH

    Liebherr 402L Bottom Mount Integrated Fridge Right Hinged ECN7860RHHLiebherr 402L Bottom Mount Integrated Fridge Right Hinged ECN7860RHHLiebherr 402L Bottom Mount Integrated Fridge Right Hinged ECN7860RHHLiebherr 402L Bottom Mount Integrated Fridge Right Hinged ECN7860RHHLiebherr 402L Bottom Mount Integrated Fridge Right Hinged ECN7860RHHLiebherr 402L Bottom Mount Integrated Fridge Right Hinged ECN7860RHHLiebherr 402L Bottom Mount Integrated Fridge Right Hinged ECN7860RHH

AVAILABLE TO ORDER FROM LIEBHERR

$15,199

Shipping Options

Enter your suburb and/or postcode below for delivery information:

Product Highlights

  • Total Capacity (L): 402
  • Energy Rating: 4 Star
  • Energy Consumption (Kwh/year): 309
  • Width: 820mm
  • Depth: 740mm
  • Height: 2150mm
  • Ice Dispenser: Yes

Product Overview

Liebherr ECN7860RHH | 402L NoFrost Bottom Mount Fridge Right Hinge

The Liebherr ECN 7860 NoFrost refrigerator-freezer is designed for integrated use, featuring NoFrost for frost-free convenience, DuoCooling for separate temperature control, and an IceMaker with a fixed water connection. It includes SuperCool and SuperFrost for rapid chilling and freezing, plus a child lock for added safety.

DuoCooling

DuoCooling uses two completely separate refrigeration circuits to ensure no air is exchanged between the fridge and freezer compartments. The food neither dries out nor is odour transferred. This means throwing less away, shopping less often, but saving more and greater enjoyment.

IceMaker with fixed water connection

Are there any ice cubes left? The IceMaker means you never have to ask. With the IceMaker with fixed water connection, the water comes directly from the tap. The MaxIce function allows you to produce up to 1.5 kg of ice cubes a day. The versatile ice compartment separator lets you choose the amount of ice cubes you want to store; easy and just as you like it.

NoFrost

When you open your freezer, you want to see frozen food – and certainly not ice and frost. NoFrost protects the freezer compartment from unwanted icing, which consumes a lot of energy and can be expensive. NoFrost means no more tedious and time-consuming defrosting of the freezer compartment, more time for other things – and saving money.

SuperFrost

SuperCool generates greater cold reserves so that freshly stored food can be rapidly chilled. Reversion from the chilling temperature of +2 °C to the normal refrigeration temperature is time or quantity-controlled to help save energy.

SuperFrost

Want to freeze your fresh food in a way that preserves vitamins? Simply activate SuperFrost – and the freezer compartment will increase its cooling capacity. In this way, the temperature remains constant when you place in unfrozen food. SuperFrost is also energy-saving: if you don't switch off the function manually, it automatically deactivates itself after 65 hours.

Specifications

  • Global

    • Fridge Type: Bottom-Mount Refrigerators
    • Model Number: ECN7860RHH

  • General

    • Defrost Type: Time Defrost
    • Door Hinge: Right
    • Installation Type: Built-in
    • Number Of Doors: 1

  • Features

    • Door Alarm: No
    • Frost Free: Yes
    • Ice Dispenser: Yes
    • LED Lights: Yes
    • Plumbing Required: No
    • Temperature Controlled Drawers: Yes
    • Water Filter: No

  • Size

    • Freezer Capacity (L): 125
    • Fridge Capacity (L): 277
    • Total Capacity (L): 402

  • Cooling Technology

    • Temperature Control Type: Electronic Controls

  • Safety Features

    • Child Lock: Yes

  • Freezer Information

    • Freezer Door Type: Pull Out Drawer

  • Freezer Compartment

    • Ice Cube Tray: Yes

  • Energy Specification/Power

    • Energy Consumption (Kwh/year): 309
    • Energy Rating: 4 Star
    • Noise Level (dBa): 39

  • Fridge Information

    • Egg Tray: Yes

  • Media

    • Dimension Images: [object Object]
    • Lifestyle Images: [object Object], [object Object], [object Object]

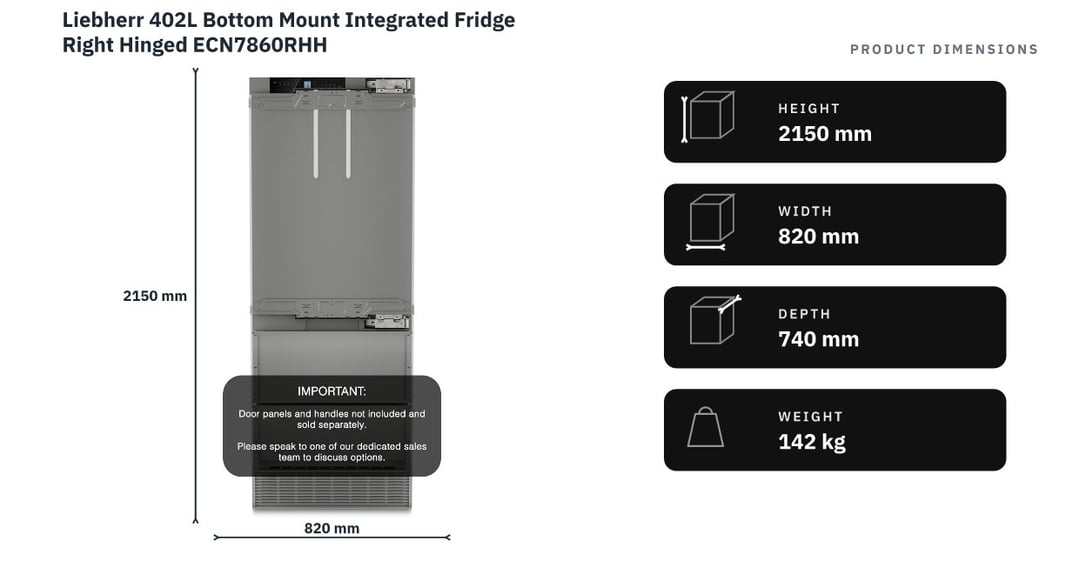

  • Dimensions

    • Depth: 740mm
    • Height: 2150mm
    • Width: 820mm

  • Weight

    • Box Weight (Kg): 152
    • Weight (Kg): 142

  • In The Box & Warranty

    • Included: Egg Tray
    • Warranty (Years): 1

Manuals

Why Buy?

Integrated cooling precision for handleless kitchen design

The DuoCooling system operates two independent refrigeration circuits, ensuring no air exchange between fridge and freezer compartments to prevent odour transfer and moisture loss. This built in fridge maintains food quality longer through separate temperature control across both zones.

NoFrost technology eliminates ice formation entirely, removing the need for manual defrosting while maintaining consistent freezer performance. The fixed-connection IceMaker produces up to 1.5kg of ice daily through direct water line connection, with an adjustable separator to customise ice storage volume. SuperCool and SuperFrost functions rapidly stabilise temperatures when adding fresh food, automatically reverting to standard operation for energy efficiency.

At 402L capacity, this bottom mount integrated fridge freezer sits flush within 820mm cabinetry for seamless integration. The right-hinged configuration suits specific kitchen layouts, while the bottom mount design places fresh food at comfortable eye level. Energy-efficient operation and maintenance-free cooling systems support daily kitchen routines without interruption.

Buy this if…

  • You want a built in fridge that integrates seamlessly into handleless kitchen design
  • You need separate cooling circuits to prevent odour transfer between compartments
  • You prefer bottom mount access with fresh food at eye level
  • You want consistent ice production through fixed water connection
  • You value frost-free operation that eliminates defrosting maintenance

Frequently Asked Questions

Is this a fully integrated fridge?

Yes, this is a built-in appliance designed to be fully integrated and concealed within your kitchen cabinetry. It has an 820mm width, ensuring it fits seamlessly into a standard tall cabinet space.

Does this integrated fridge have an automatic ice maker?

Yes, this integrated fridge includes an IceMaker that produces up to 1.5kg of ice daily. This automatic ice maker does not require external plumbing for operation.

Do I need to manually defrost this bottom mount fridge?

No, this bottom mount fridge is equipped with NoFrost technology, which automatically prevents ice build-up in the freezer compartment. This means you will never need to manually defrost it.

How much storage space does this 402L fridge offer?

This fridge provides a total of 402 litres of capacity, with 277 litres allocated to the fridge compartment for fresh food storage. For more options, explore our range of integrated fridges to find the perfect fit.

What is DuoCooling in this Liebherr fridge?

DuoCooling is a system that uses two completely separate refrigeration circuits for the fridge and freezer sections of the appliance. This prevents air and odour transfer between the compartments and ensures precise temperature control for optimal food preservation.
