Fisher & Paykel

Fisher & Paykel 60cm Series 7 Box Chimney Wall Rangehood HC60DCXB4

HC60DCXB4

AVAILABLE TO ORDER FROM FISHER & PAYKEL

$1,499

Shipping Options

Enter your suburb and/or postcode below for delivery information:

Product Highlights

  • Air Flow: 780m³/hr(M³/H)
  • Auto Shutoff: Yes
  • Boost Function: Yes
  • Material: Stainless Steel and Glass
  • Rangehood Size (cm): 60
  • Rangehood Type: Canopy
  • Timer: Yes
  • Warranty (Years): 2

Product Overview

Fisher & Paykel HC60DCXB4 | Series 7 60cm Wall Rangehood Stainless Steel & Glass

This Contemporary style rangehood extracts steam, grease and cooking odours quietly and efficiently. The stainless steel finish of this vent hood will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel kitchen appliance family.

  • • With three fan speeds plus boost, select the perfect extraction rate for your cooking
  • • Powerful maximum air movement of 780m³/hr
  • • Energy-efficient LED lighting to illuminate your cooking surface
  • • Wi-Fi enabled for notifications through the SmartHQ™ app

      • EFFECTIVE EXTRACTION

      Featuring perimeter extraction, four fan speeds, and a boost function, this range hood provides powerful extraction to quickly remove odours and steam. Odours can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.

      SIMPLE CONTROLS

      The intuitive control panel responds to the touch of your finger. LED strip lighting illuminates the entire cooktop surface for the perfect sear or ideal reduction. Rangehood settings, including temperature and fan speed, can be controlled via the SmartHQ™ app, with additional voice control options for fan speeds and lighting.

      EASY CLEANING

      Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your rangehood.

      EASY INSTALLATION

      This rangehood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.

      The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Specifications

  • Description

    • Search Snippet: The Fisher & Paykel HC60DCXB4 rangehood delivers 780m³/hr air movement with Wi-Fi connectivity and touch controls.

  • Global

    • Model Number: HC60DCXB4
    • Rangehood Type: Canopy

  • General

    • Colour: Stainless Steel
    • Control Type: Touch
    • Made In: CHINA
    • Material: Stainless Steel and Glass

  • Features

    • Boost Function: Yes
    • Timer: Yes

  • Size

    • Duct Diameter (mm): 150
    • Rangehood Size (cm): 60

  • Performance

    • Air Flow : 780m³/hr(M³/H)
    • Speed Levels: 3

  • Safety Features

    • Auto Shutoff: Yes
    • Dishwasher Safe: Yes

  • Lighting Features

    • Lighting Type: LED
    • Number Of Lights: 1

  • Filter Information

    • Filtration : Mesh
    • Number Of Filters: 2

  • Energy Specification/Power

    • Motor Power (W): 248
    • Voltage (V): 220-240

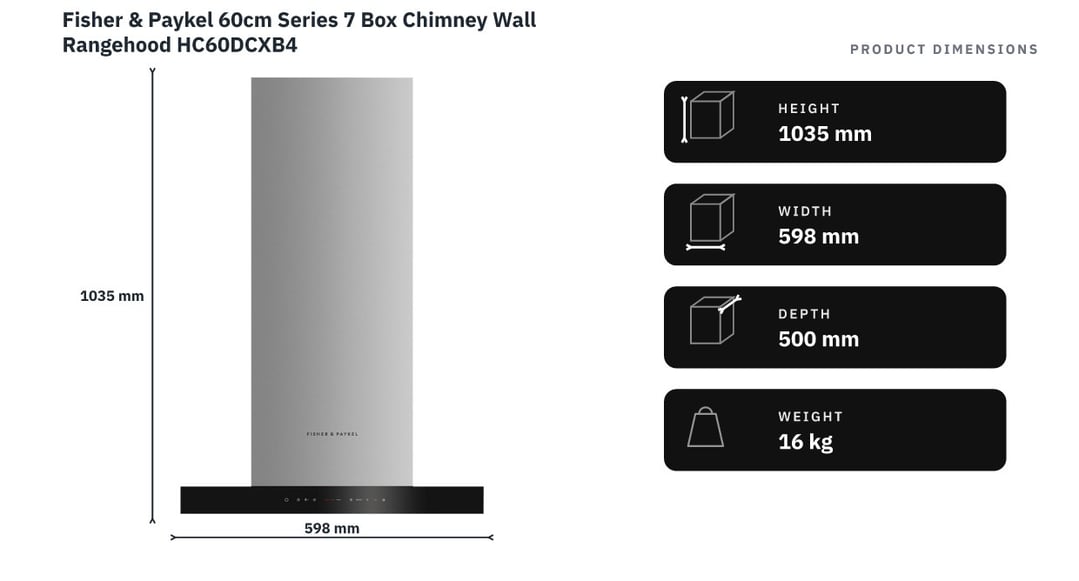

  • Dimensions

    • Depth: 500mm
    • Height: 1035mm
    • Width: 598mm

  • Weight

    • Weight (Kg): 16

  • In The Box & Warranty

    • Warranty (Years): 2

Manuals

Why Buy?

Powerful perimeter extraction for contemporary kitchens

The 780m³/hr maximum airflow removes cooking vapours, steam and grease through perimeter extraction that captures fumes at source rather than letting them escape into your kitchen. Four fan speeds plus boost function deliver precise control for every cooking method, from gentle simmering to high-heat searing.

Touch-responsive controls adjust extraction instantly while energy-efficient LED strip lighting illuminates your entire cooktop surface with clear, even brightness. The 15-minute auto-timer continues extraction after cooking finishes, ensuring lingering odours are completely eliminated rather than settling into fabrics and surfaces.

Stainless steel and glass construction provides a sleek profile that complements contemporary kitchen design while resisting fingerprints and wiping clean with minimal effort. Dishwasher-safe filters remove easily for maintenance, and SmartHQ app connectivity sends cleaning reminders to maintain peak extraction performance. Flexible installation suits both ducted and recirculated setups for houses and apartments alike.

Buy this if...

  • You need powerful extraction that actually removes steam and odours rather than just circulating them
  • You want bright, even LED lighting that illuminates your entire cooking surface
  • Your kitchen design requires sleek stainless steel and glass finishes
  • You prefer low-maintenance appliances with dishwasher-safe components
  • You want smart connectivity with cleaning reminders and app control

Frequently Asked Questions

How powerful is the extraction on this rangehood?

This rangehood provides powerful extraction with an airflow of 780m³/hr. It features four fan speeds plus a boost function to quickly clear cooking odours and steam from your kitchen.

What are the installation options for this box chimney rangehood?

This rangehood supports both external ducting and internal recirculation, offering versatile installation options to suit your kitchen's setup. If you are looking for other styles or sizes, you can browse our full range of canopy rangehoods. The required duct diameter for external venting is 150mm.

How do I clean the filters on this rangehood?

The filters on this rangehood are dishwasher-safe, making them simple to maintain. The unit also sends filter cleaning notifications via the SmartHQ app, reminding you when it's time for a wash.

Does this rangehood have a timer or smart controls?

Yes, this model includes a 15-minute auto timer that continues extraction after cooking, and it features Wi-Fi connectivity through the SmartHQ app for remote control of fan speeds and lighting. The control type on the unit itself is touch.

What kind of lighting does the 60cm rangehood provide for cooking?

This rangehood uses energy-efficient LED strip lighting to illuminate your entire cooktop surface. It has one light, ensuring clear visibility while you're cooking.
