Fisher & Paykel Series 7 Wall Rangehood, 90cm, Box Chimney with External Motor HC90DCEBB4

HC90DCEBB4

AVAILABLE TO ORDER FROM FISHER & PAYKEL

$3,199

Shipping Options

Enter your suburb and/or postcode below for delivery information:

Product Highlights

  • Air Flow: 1200m³/hr(M³/H)
  • Auto Shutoff: Yes
  • Boost Function: Yes
  • Material: Black Stainless Steel and Glass
  • Rangehood Size (cm): 90
  • Rangehood Type: Canopy
  • Timer: Yes
  • Warranty (Years): 2

Product Overview

Fisher & Paykel HC90DCEBB4 | Series 7 90cm Wall Rangehood with External Motor Black Steel & Glass

This wall chimney rangehood has an externally installed inline motor to deliver near silent yet powerful extraction of steam, grease and cooking odours.1

  • • With three fan speeds plus a boost function, select the perfect extraction rate for your cooking
  • • Perimeter extraction for efficient removal of steam and odours
  • • Powerful maximum air movement of 1200m³/hr
  • • Wi-Fi enabled for notifications through the SmartHQ™ app

      • EFFECTIVE EXTRACTION

      Featuring perimeter extraction, three fan speeds and a boost function, this rangehood provides powerful extraction to quickly remove odours and steam. Odours can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.

      FULL SURFACE LIGHTING

      Energy-efficient, dimmable LED lights provide superb illumination of the entire cooking surface. Designed to match our Contemporary style appliances, this wall chimney rangehood features brushed black stainless steel and black glass styling to complement any kitchen design.

      EASY CLEANING

      Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filters to ensure you get the best performance out of your rangehood.

      CONSIDERED EFFICIENCY

      The right amount of air is extracted to effectively remove cooking odours with reduced effect on your heating or air conditioning, ensuring less energy is used. The powerful external motor is installed outside the home to deliver near silent extraction of cooking odours and steam from the kitchen.

      The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

      1 External motor Mounting Kit & Motor also includes: Backdraft damper assembly, roof penetration pipe (150mm internal diameter PVC), duct adapter (150-200mm) and 200mm flexible ducting (6m length). Any image or information associated with this model is preliminary and may be subject to change.

      External motor Mounting Kit & Motor also includes: Backdraft damper assembly, roof penetration pipe (150mm internal diameter PVC), duct adapter (150-200mm) and 200mm flexible ducting (6m length). Any image or information associated with this model is preliminary and may be subject to change.

Specifications

  • Description

    • Search Snippet: The Fisher & Paykel HC90DCEBB4 90cm rangehood features external motor design for near-silent operation.

  • Global

    • Model Number: HC90DCEBB4
    • Rangehood Type: Canopy

  • General

    • Colour: Black Steel
    • Control Type: Touch
    • Material: Black Stainless Steel and Glass

  • Features

    • Boost Function: Yes
    • Timer: Yes

  • Size

    • Duct Diameter (mm): 150
    • Rangehood Size (cm): 90

  • Performance

    • Air Flow : 1200m³/hr(M³/H)
    • Speed Levels: 3

  • Safety Features

    • Auto Shutoff: Yes
    • Dishwasher Safe: Yes

  • Lighting Features

    • Lighting Type: LED
    • Number Of Lights: 1

  • Filter Information

    • Filtration : Mesh
    • Number Of Filters: 3

  • Energy Specification/Power

    • Voltage (V): 220-240

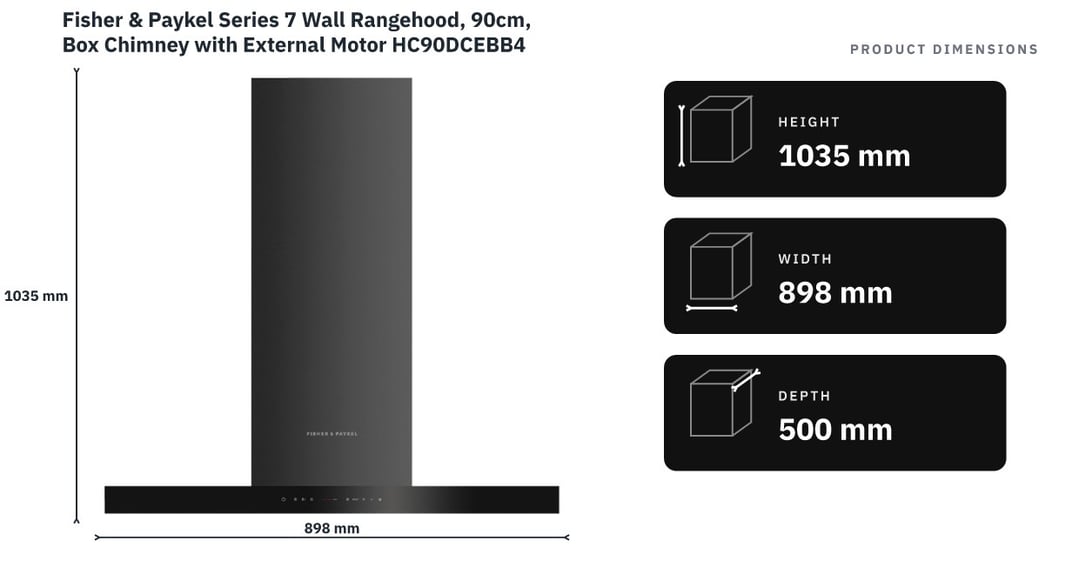

  • Dimensions

    • Depth: 500mm
    • Height: 1035mm
    • Width: 898mm

  • In The Box & Warranty

    • Warranty (Years): 2

Manuals

Frequently Asked Questions

How quiet is this rangehood with the external motor?

The external motor design means this rangehood operates near-silently in your kitchen. This allows for powerful 1200m³/hr extraction without disruptive noise, as the motor is mounted outside.

What kind of filters does this rangehood use and are they easy to clean?

This canopy rangehood uses mesh filters, which are designed to be dishwasher safe for easy cleaning. There are three filters in total, ensuring efficient grease capture.

What size ducting does this 90cm rangehood require for installation?

This 90cm rangehood requires a 150mm duct diameter for optimal airflow and installation. It comes with an external motor mounting kit that includes a roof penetration pipe and 6m of flexible ducting.

What features does this rangehood have for clearing strong cooking smells?

It offers powerful 1200m³/hr extraction with three fan speeds plus a boost function to quickly clear strong cooking smells. The unit also includes a 15-minute auto-timer and auto shutoff for convenience, and you can browse other canopy rangehoods if you need different features.

What is the lighting like on this black steel rangehood?

This black steel rangehood features dimmable LED lighting positioned to illuminate the entire cooking surface. There is one light, providing clear visibility over your hob.
