Smeg Classic 90cm Concealed Undermount Rangehood KDIAM90AX
KDIAM90AX
AVAILABLE TO ORDER FROM SMEG
RRP $2,990
Save $300
Now
$2,690
Offer ends
9 Days
Shipping Options
Enter your suburb and/or postcode below for delivery information:
Key Features
- 1555m/hr extraction removes cooking odours and steam quickly.
- Four LED lights brightly illuminate your cooking area.
- 3 speed settings plus intensive boost for precise control.
- Twin motor for powerful and effective air extraction.
- Dishwasher-safe stainless steel filters simplify cleaning.
- Low noise operation ensures a peaceful kitchen environment.
Product Overview

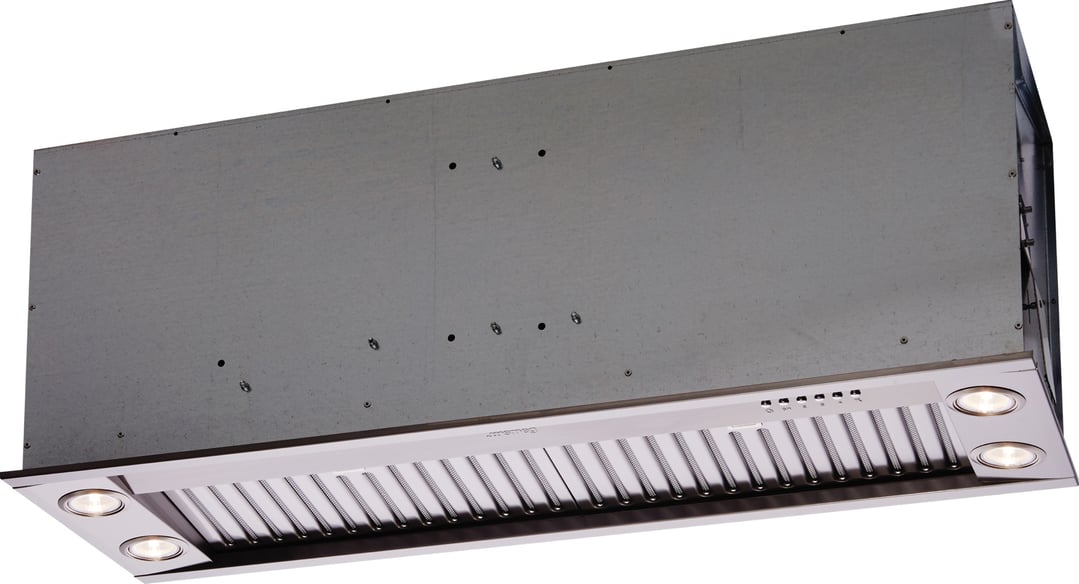

SMEG KDIAM90AX | 90CM UNIVERSALE UNDERMOUNT RANGEHOOD STAINLESS STEEL
Smeg Rangehood designed in Italy, has functional characteristics of quality with a design that combines style and high technology. Designed with Smeg's Universale aesthetics and stainless steel finish, this integrated rangehood is sure to be a great addition to your kitchen. It features two baffle anti-grease filters with a capacity of 1555m³/hr, four LED lights to illuminate your cooking area and 3 speed settings to choose from plus intensive boost speed with just a push of a button.
EXTREME AIR EXTRACTION
Careful research and development ensures that Smeg rangehoods are super-quiet with maximum extraction performance. These models offer the highest possible performance for extreme cooking conditions.
LOW NOISE
The design of the fan, motor and housing contribute to streamlined airflow which reduces noise levels during operation, for a more peaceful kitchen environment.
TWIN MOTOR
Twin motor model rangehoods feature double air uptake and dual impellors for fast air movement and the maximum footprint for clearance. Twin motor rangehoods double the effectiveness of the appliance.
DISHWASHER SAFE STAINLESS STEEL FILTERS
Smeg stainless steel honeycomb filters with stainless steel latch may be washed in the dishwasher for ultimate convenience. The 4 ply mesh effectively captures grease and grime whilst maintaining optimum airflow.
Specifications
Global
- Model Number:
- KDIAM90AX
- Rangehood Type:
- Undermount
General
- Colour:
- Stainless Steel
- Control Type:
- Electronic buttons
- Made In:
- Italy
- Material:
- Stainless steel
- Installation:
- Built-in installation
Features
- Boost Function:
- Yes
- Timer:
- Yes
Size
- Duct Diameter (mm):
- 150
- Rangehood Size (cm):
- 90
Performance
- Air Flow :
- 1555 m³/h(M³/H)
- Speed Levels:
- 4
Safety Features
- Auto Shutoff:
- Yes
- Dishwasher Safe:
- Yes
Lighting Features
- Lighting Type:
- LED
- Number Of Lights:
- 4
Filter Information
- Filtration :
- Stainless steel baffle filter
- Number Of Filters:
- 2
Energy Specification/Power
- Motor Power (W):
- 550
- Motor Type:
- Single Motor
- Noise Level (dBa):
- 74
- Voltage (V):
- 220-240

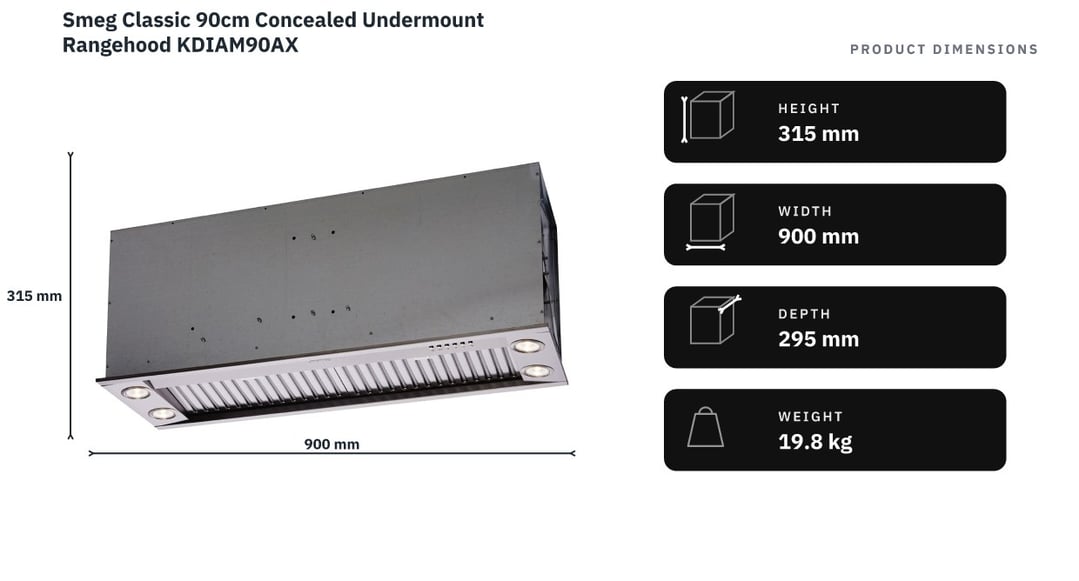

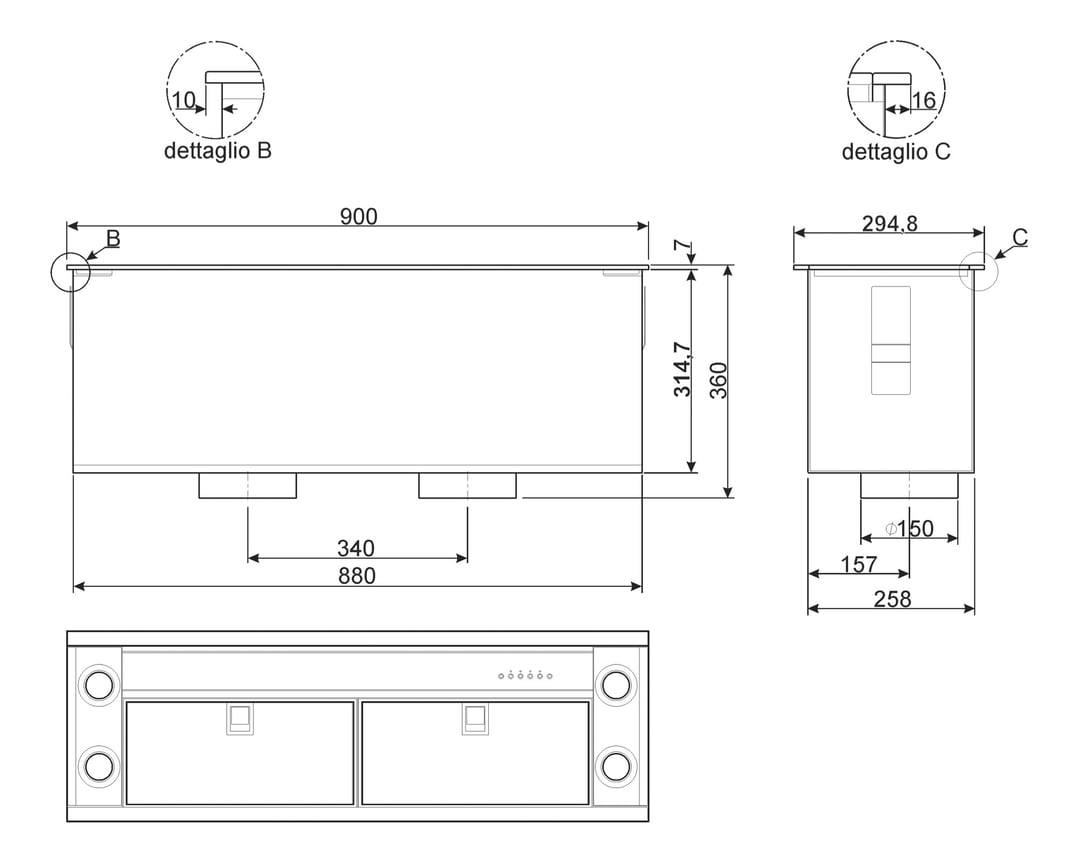

Dimensions
- Depth:
- 295mm
- Height:
- 315mm
- Width:
- 900mm
Weight
- Weight (Kg):
- 19.8
In The Box & Warranty
- Included:
- 2 x Stainless steel baffle filters
- Warranty (Years):
- 2
Manuals
Why Buy?

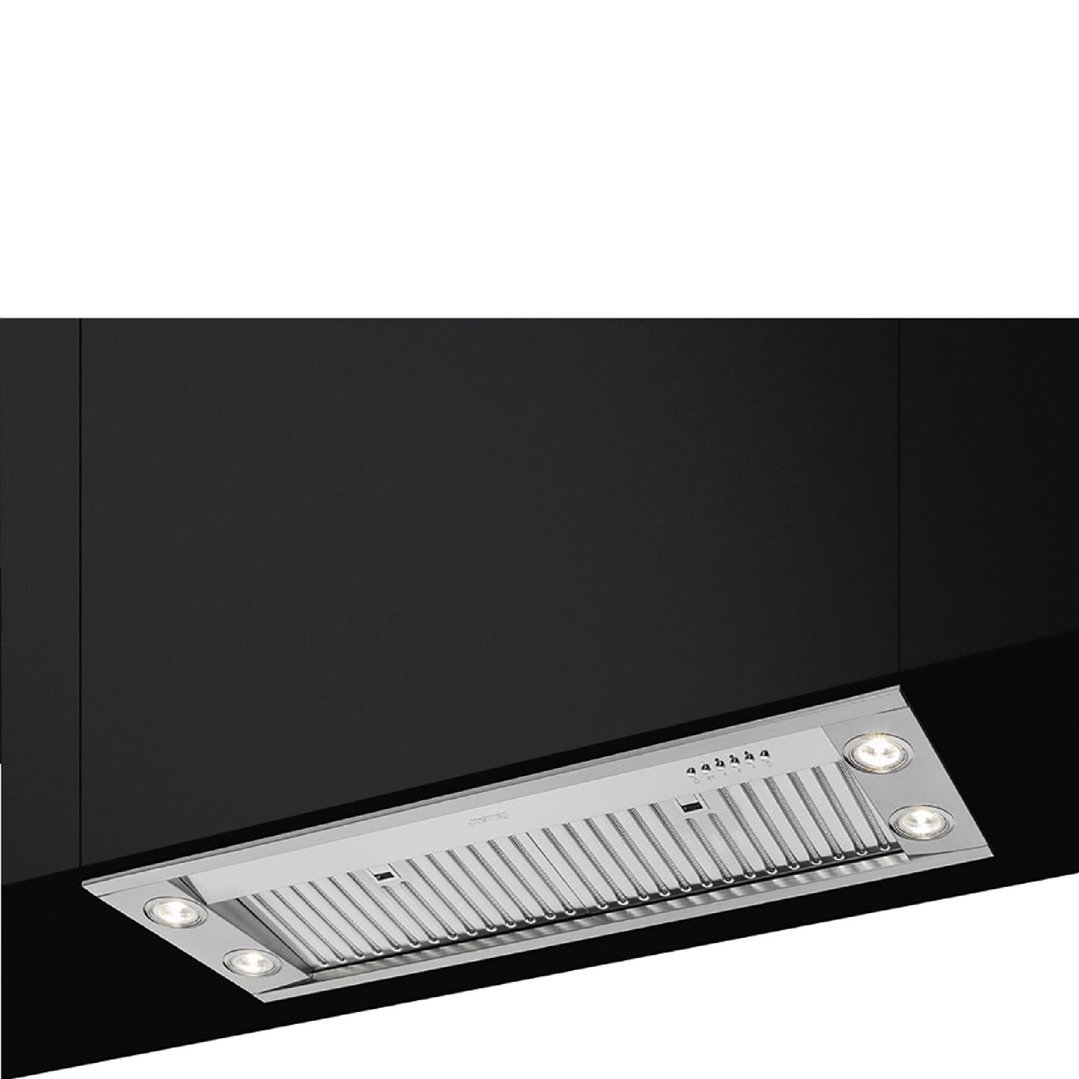

Concealed 90cm extraction that disappears into the cabinetry
Fitted beneath an overhead cabinet, this 90cm undermount rangehood keeps extraction hardware out of sight while still pulling air at 1555m³/hr through twin motors, so a considered kitchen rangehood doesn't have to mean a bulky canopy overhead.
The dual impellor system moves air fast enough to clear steam and cooking odours from searing, frying or wok work before they settle into open-plan living areas, and the motor housing is engineered for low noise so extraction doesn't compete with conversation. Four LED lights give even coverage across the cooktop, and the stainless steel honeycomb filters, held with a stainless steel latch, lift straight out for a dishwasher cycle rather than a scrubbing session at the sink.
Three speed settings plus an intensive boost let you match output to what's on the stove, from a gentle simmer to a hard sear, while the concealed profile keeps sightlines clean under matching or handleless cabinetry. Finished in stainless steel and built in Italy, it's designed to run daily without the performance drop-off cheaper hoods show over time.
Buy this if…
- You want a canopy rangehood's power without the visible canopy
- Your kitchen opens onto a living space and odour control matters
- You cook with high heat or strong aromatics on a regular basis
- You'd rather pull filters out for the dishwasher than hand-wash them
- You're fitting out a handleless kitchen and want extraction hidden from view
