Bosch Recirculation Kit HEZ9VDKR0
HEZ9VDKR0
BACKORDER
$218
Pay In 4
Pay in 4 interest-free payments of $54.5
Afterpay 4 interest-free payments of $54.5
Zip
Own it from $10 per week
Shipping Options
Enter your suburb and/or postcode below for delivery information:
Bosch HEZ9VDKR0 | Recirculation kit

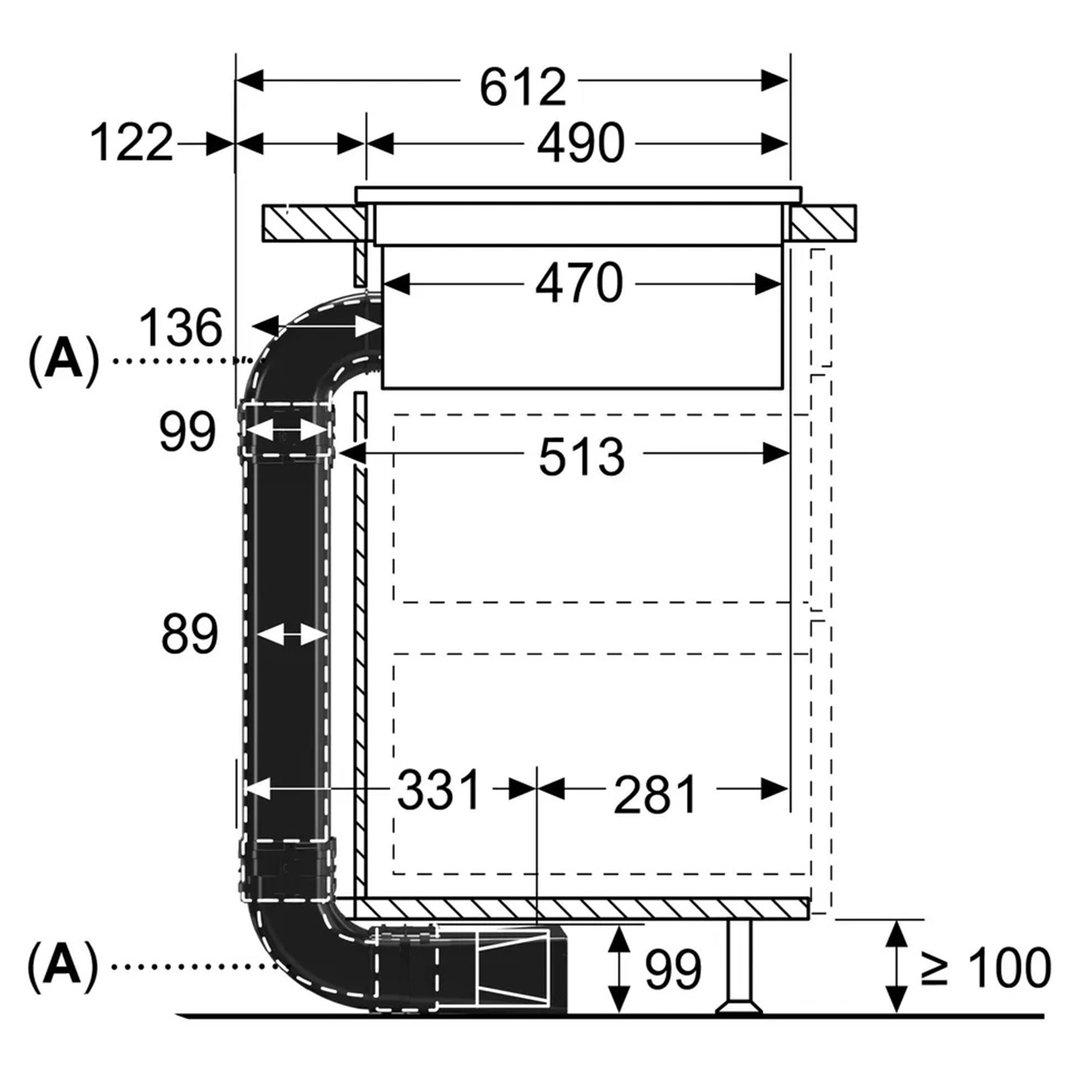

Set of ducting elements for partly ducted recirculation extraction. For worktop depths of 70 cm or larger.
- • Straight tube element (male, 500 mm)
- • 2x Vertical 90° “L” bow flat duct element (male)
- • 3x Connector sleeve (female) to combine male flat duct elements
- • Accessory kit for partly ducted recirculation configurations of your cooktop with integrated ventilation module in kitchens with worktop depths of 70 cm or larger.
Specifications
Description
- Search Snippet: The Bosch HEZ9VDKR0 recirculation kit includes ducting elements for partly ducted extraction on 70cm+ worktops.
Global
- Model Number: HEZ9VDKR0
General
- Colour: Black
Dimensions
- Depth: 595mm
- Height: 175mm
- Width: 400mm
Weight
- Weight (Kg): 2.6
In The Box & Warranty
- Included: 3x Connector sleeve (female) to combine male flat duct elements, 2x Vertical 90° “L” bow flat duct element (male), Straight tube element (male, 500 mm)
- Warranty (Years): 1
Manuals
Frequently Asked Questions
What is this recirculation kit used for?
This recirculation kit enables partly ducted recirculation extraction for cooktops with integrated ventilation. It provides a complete ducting solution for kitchens where full external ducting is not possible.
What worktop depth is required for this kit?
This recirculation kit is designed for kitchens with 70cm or larger worktop depths. This ensures adequate space for the flat duct elements to be installed correctly.
What components are included in the Bosch recirculation kit?
The kit includes three female connector sleeves, two vertical 90° “L” bow flat duct elements, and one straight 500mm male tube element. These parts are essential for combining male flat duct elements and setting up the ventilation path.
Is this kit compatible with all cooktops?
This kit is specifically designed for cooktops with integrated ventilation systems. It helps maximise flexibility in the design and installation of such cooktop ventilation systems.
Why would I choose a partly ducted recirculation system?
A partly ducted recirculation system is ideal when full external ducting is not feasible, offering an effective way to filter and return air to your kitchen. You can find more options and components by browsing our rangehood accessories.
